『電車時代 現在才開始!』

此主題相關圖片如下：


此主題相關圖片如下：

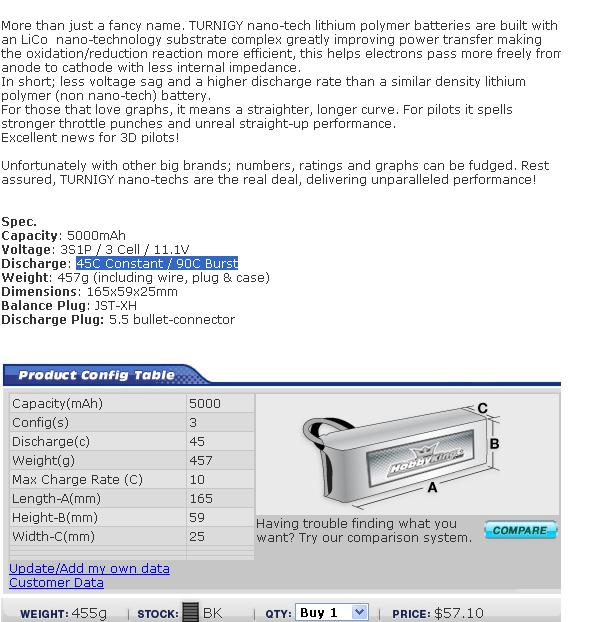

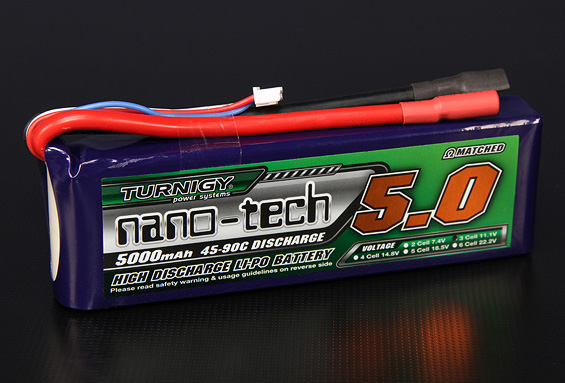

這種奈米科技電池
真正打開電能的時代了

放電與充電能力超高
放電 45C Constant / 90C Burst (220A以上放電)
充電 10C (50A充電)

http://www.hobbyking.com/hobbyking/store/uh_viewItem.asp?idProduct=11956

哇~~~~~~~~~~~~!
超猛的電池ㄟ
呼叫小季..........
快買幾顆來試看看吧.....

太猛了啦
50A充電ㄟ 去哪找這種充電器 @@

只是這麼高效能的電池 售價應該也是很高貴吧

有啦
最近一堆人賣mega power 2014
就是準備入手1000w充電器了吧

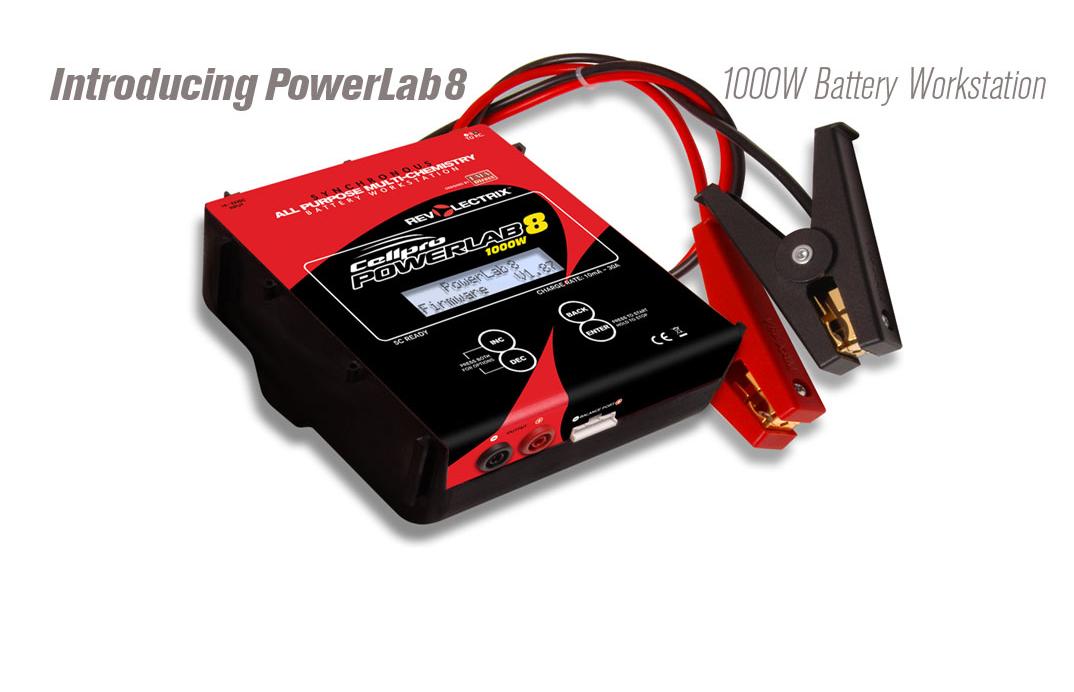

PowerLab8 猛的喔
光那個夾電源的夾子 就超恐怖的


此主題相關圖片如下：

http://www.revolectrix.com/powerlab8.htm
http://www.fmadirect.com/products.htm?cat=89&nid=4

For Battery types: Lithium Polymer (1s to 8s balanced, 1s to 2s unbalanced), Lithium Ion (1s to 8s balanced, 1s to 2s unbalanced), Lithium Manganese (1s to 8s balanced, 1s to 2s unbalanced), A123 (LiFePO4) (1s to 8s balanced, 1s to 10s unbalanced), NiCd (1s to 21s), NiMH (1s to 21s), 6v, 12v, 24v Lead Acid batteries (Flooded, Gel, AGM, SLA)
Pack capacity: 20 mAh to 360Ah
Input voltage: 10-32VDC, reverse polarity protected
Input current: 1A to 50A, software limited
Power conversion: Synchronous DC/DC converter, supports multiple switcher frequencies of 31.25 kHz, 62.5 kHz, 125 kHz; user selectable by preset, 85% to 93% efficiency depending on output current
Output battery charge current: Adjustable range 10mA to 30A, limited by 50A input current*
Output battery discharge current: Internal discharge 10mA to 10A, 100W max Regenerative discharge 10mA to 30A, 1000W max**
Continuous max output power: 516W @ +12VDC input, 1008W @ +24VDC
Cell balancing: Resolution 78uV (16 bit) for 1s-8s Li or A123 (LiFePO4) balanced charging
Voltage calibration: Cell voltage measurements are factory calibrated to a standard traceable to NIST; calibration is to +/- 6 mV
Current calibration: Charge current is factory calibrated on a 4A standard; calibration is to +/- 1mA
Measurement accuracy:
Voltage resolution: 78uV (16 bit)
Voltage tolerance: +/- 6mV
Charge current: +/- 1%
Capacity added to pack: +/- 1%
Percent capacity (“Fuel”): +/- 5% (with accurate fuel table defined for battery being charged)
Serial data output: 19.2kbps, 8 bits, 1 start bit, 1 stop bit, no parity
Data integrity: Checksum, CRC checking
Cooling fans: Twin, 13 CFM, 50mm diameter
Heat sink: Internal 200W aluminum, thin finned
Output battery connector: “Cellpro” compatible, JST PA series, 9 position
LCD: 2 line, 16 character, light grey/blue backlit

不光那個夾電源的夾子~~(好像汽車的夾子)
線也很粗......
果然是大電流用的!

contry 大大˙你買來試試看....給我們知道這樣我們敢買啊....

不行
我不是電車狂
我不會在這上面花太多錢
這個等威力大與WPJ大2位來試試吧
我只放毒
解毒要找他們

偶不行了 中毒太深 屁眼又痛 現正在養傷中~沒心情敗~

叫臭威力去試吧, 他很閒.

呵呵.....都沒人解毒啊.......只能默默等人敗............

這可以直接拿去發動汽車了吧><
